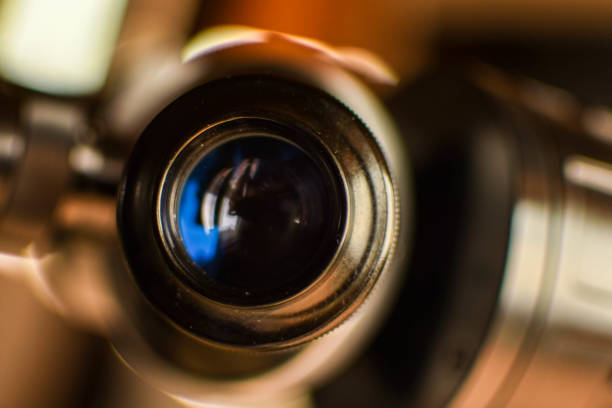

Optics
The series features Achromatic objectives in a 160mm Finite system. The 10X/14 eyepiece carries a pointer for demonstration purposes.

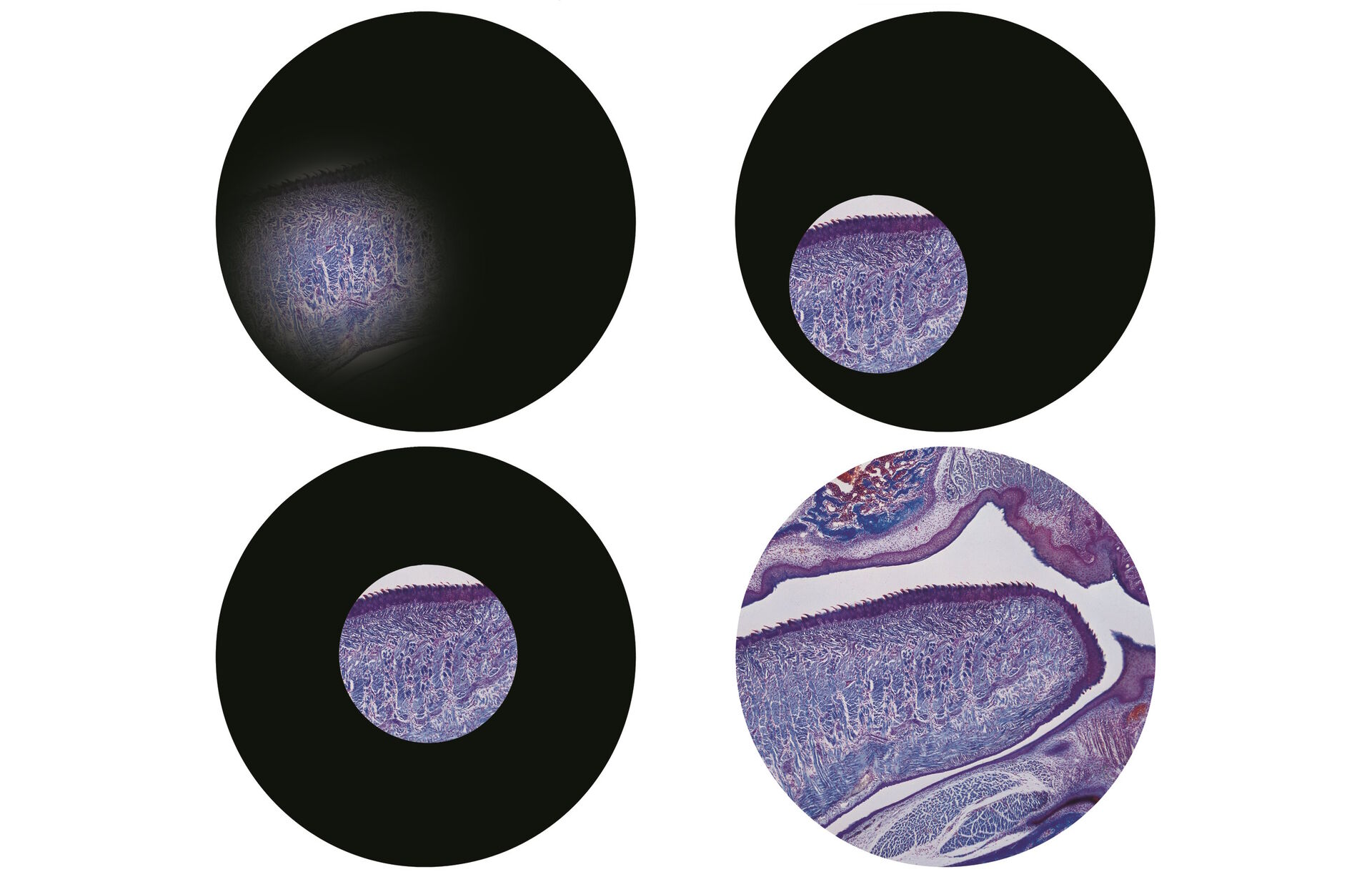

Illumination
The illumination is based on a plan-concave mirror. The substage condenser is a rotary disc with a set of lenses harmonized to each objective.

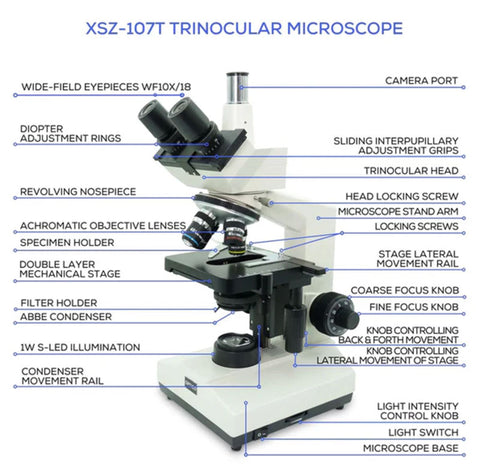

Mechanics
The 3-fold nosepiece ensures precise click-stops for each objective position. The plain stage carries 2 sample clips for a safe fixation of the slide.
